MXF CVBC

MX FUEL™ briefcase concrete vibrator

Leave a Review

Features

Compact and slim design for increased mobility suiting stationary as well as mobile applications

Carrying strap and handle for increased flexibility on site and easy transport

Equipped with a ring for easy attachment of the vibrator to the scaffolding or the formwork

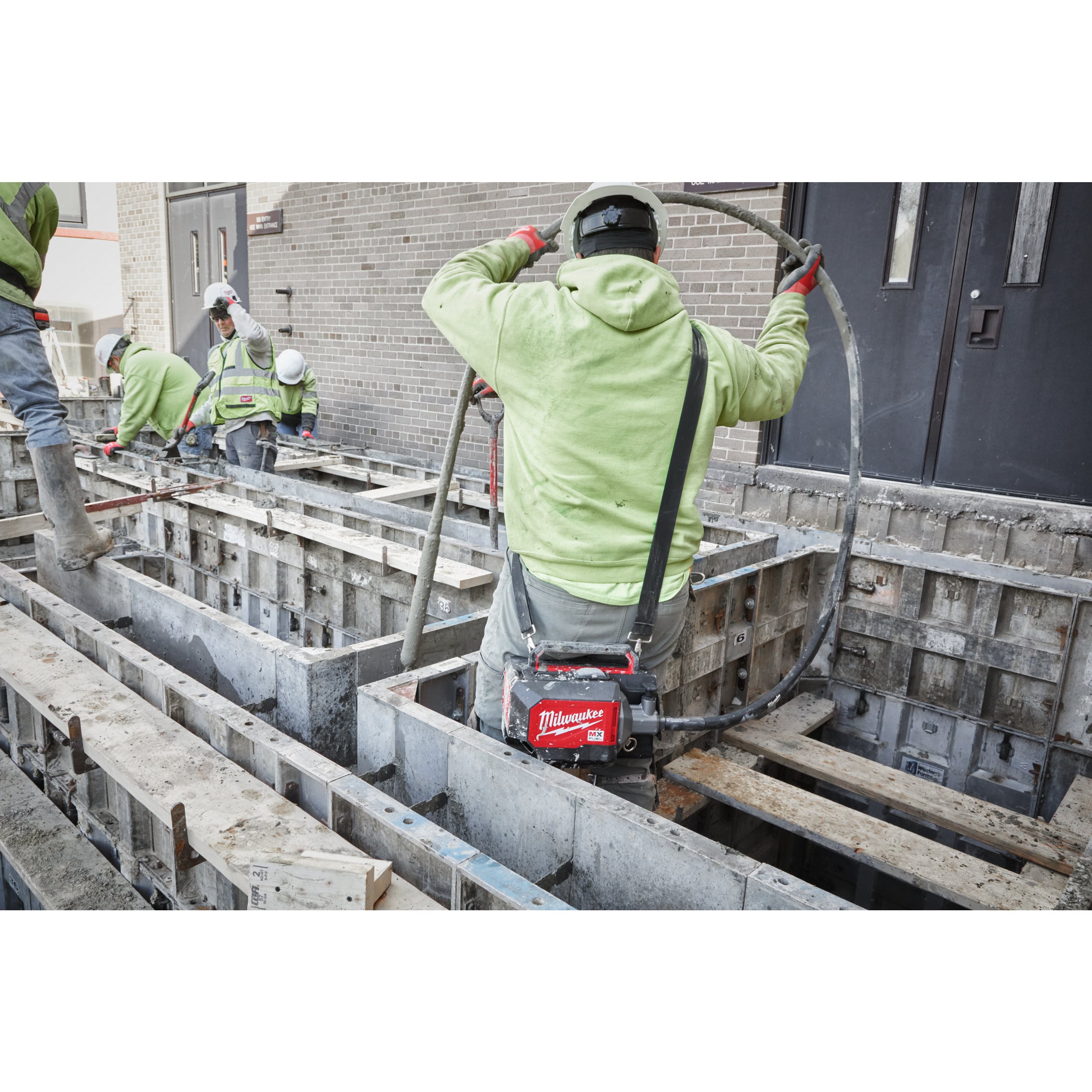

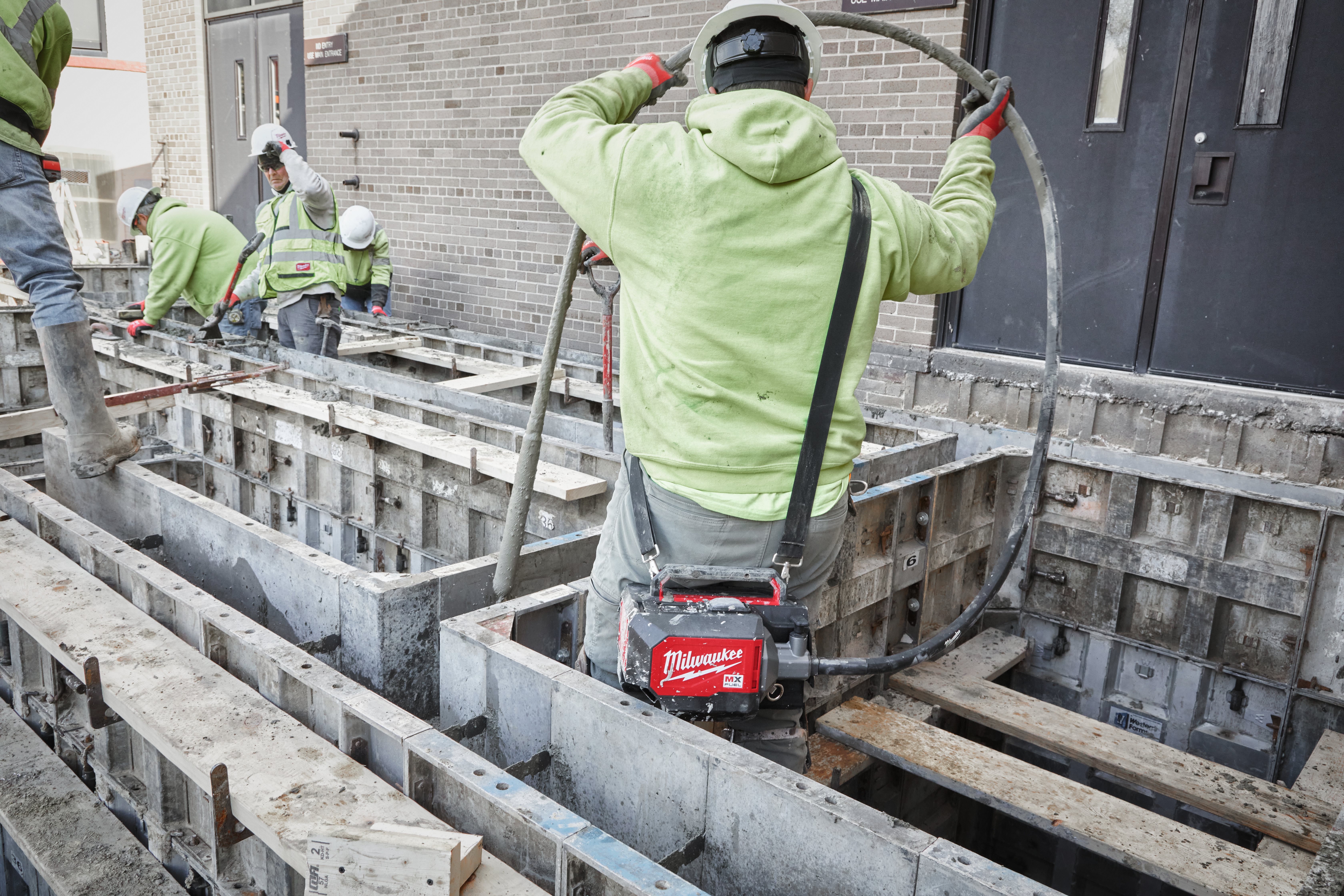

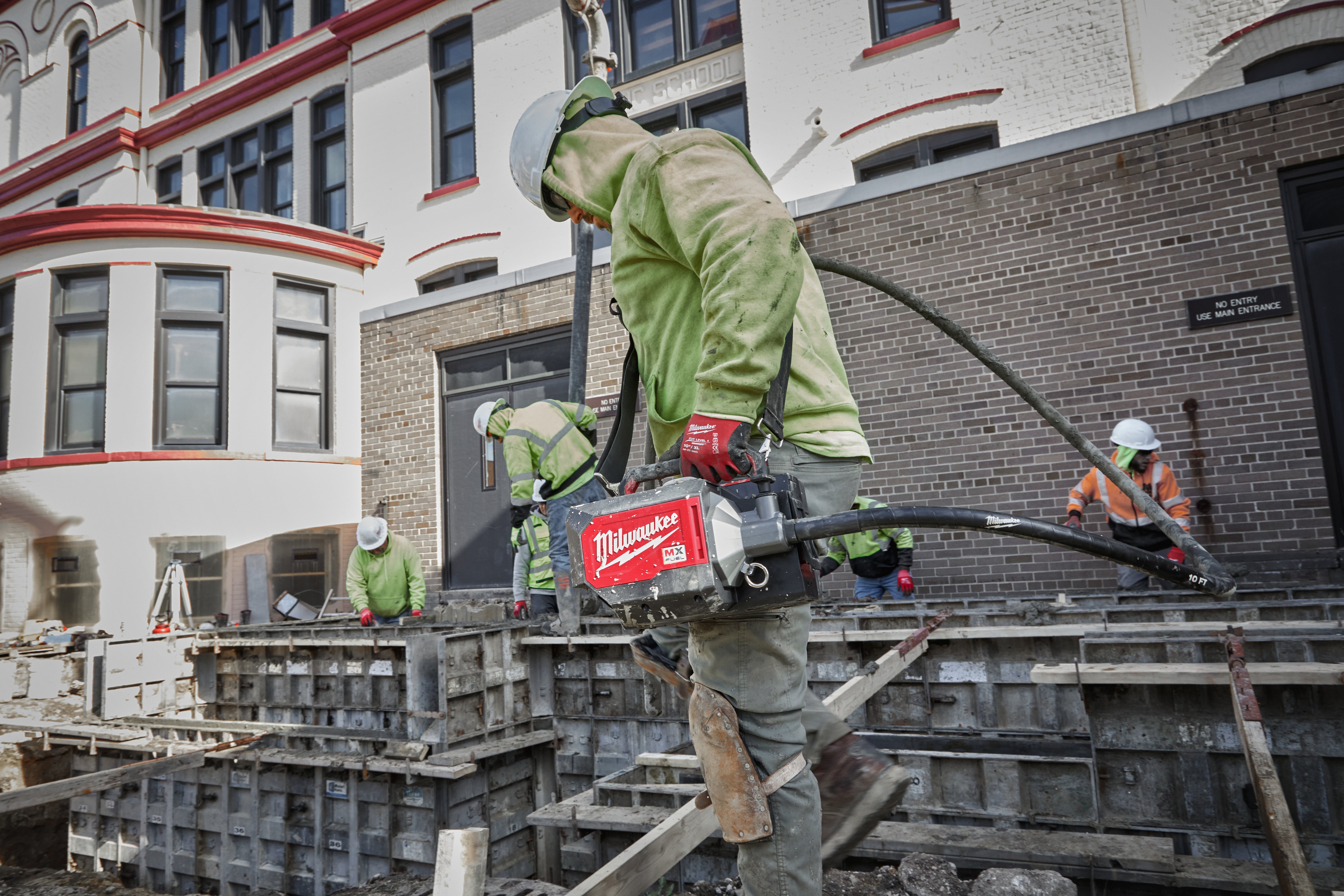

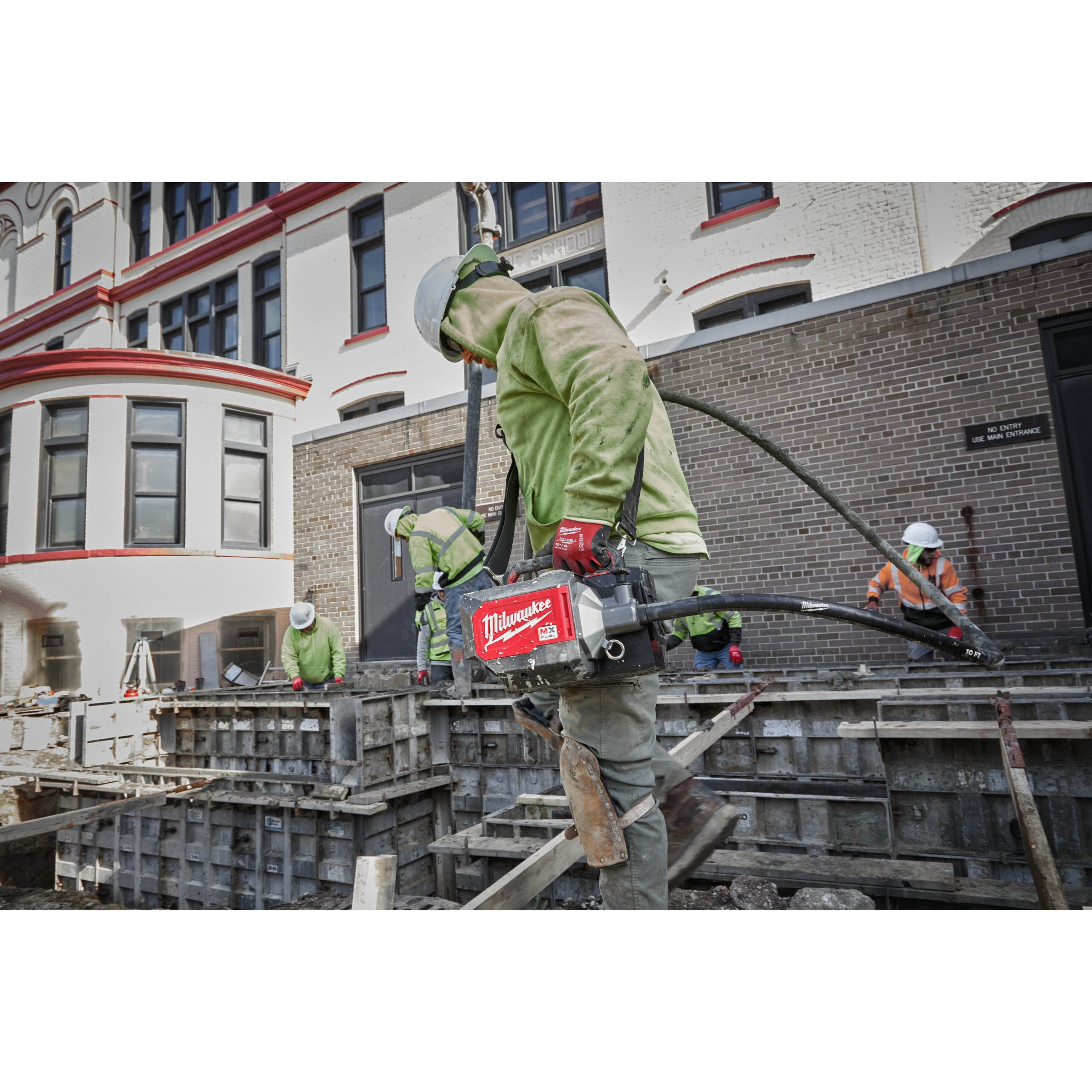

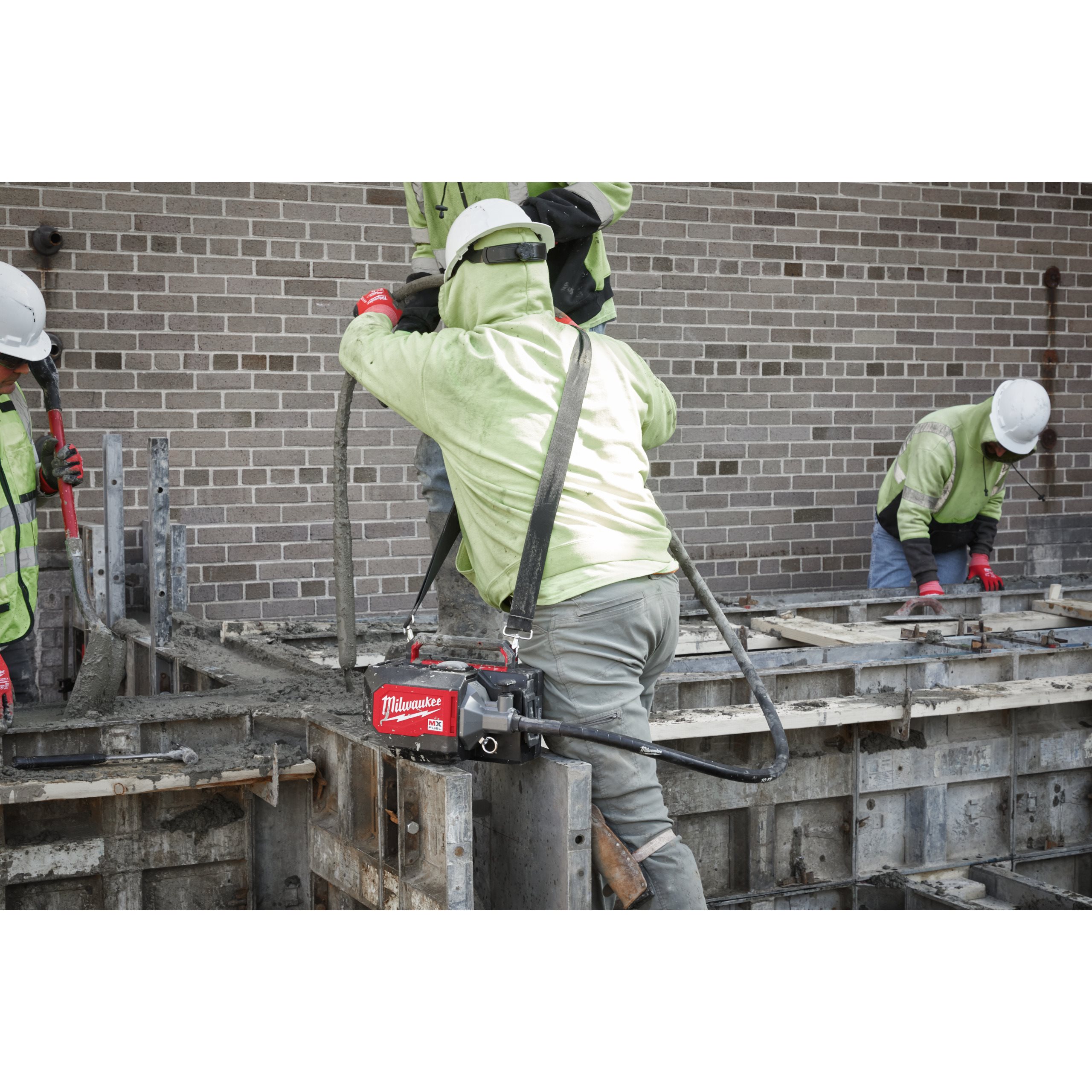

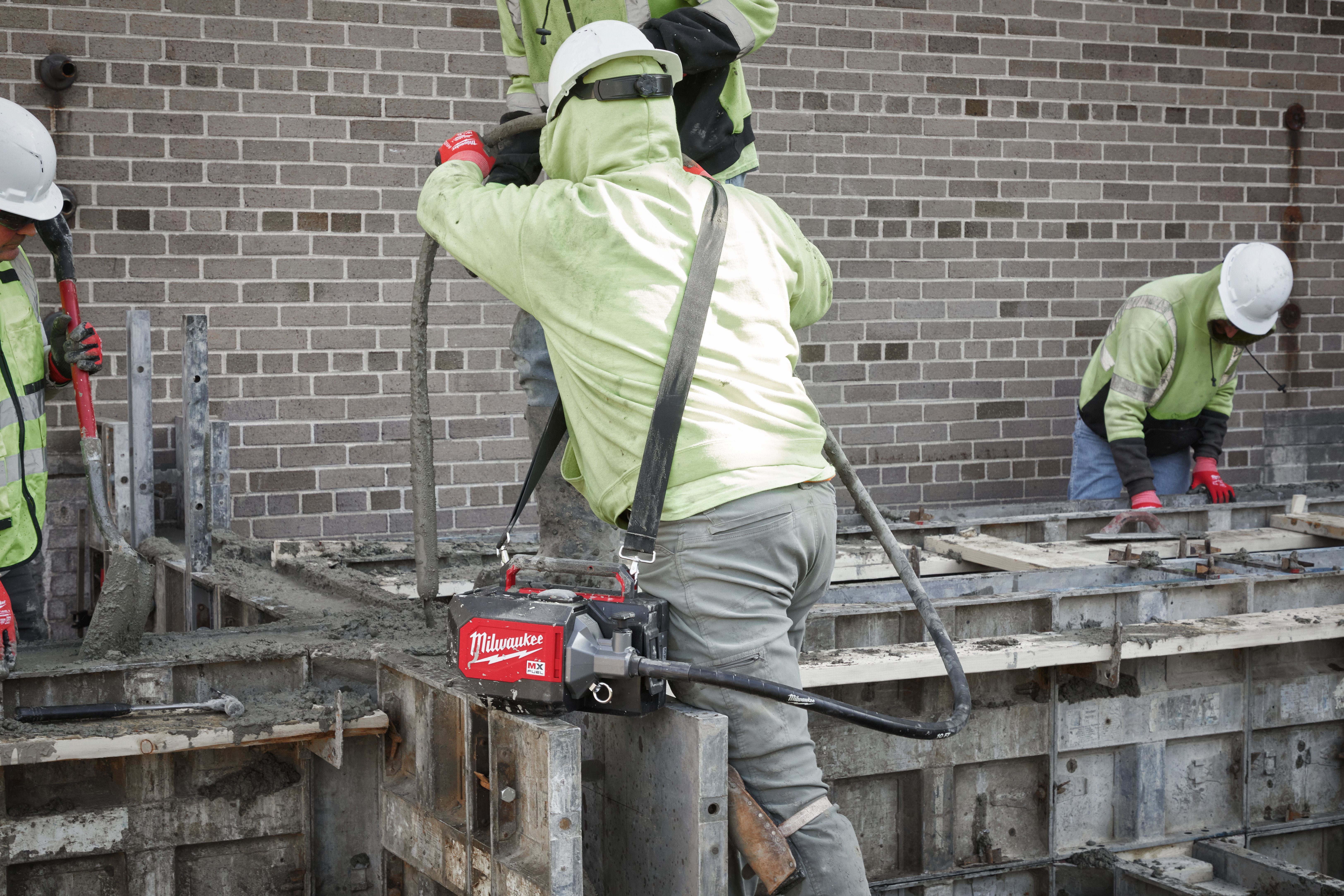

The MX FUEL™ Briefcase Concrete Vibrator is the ideal solution when working on walls and columns, delivering AC like performance without the hassle of laying cables or having the need for an AC socket on the jobsite

It has the power to push up to ⌀63 mm head at over 11,200 VPM for optimal consolidation, even in the stiffest concrete

The push-button start delivers instant power, eliminating the repetitive motions of a pull start and reducing downtime, allowing you to get jobs done faster without sacrificing the power and run time you expect

It can accept shafts up to 6.4 m long and heads up to ⌀63 mm without sacrificing power

Consolidates up to 40 m³ of concrete on 1x MXF XC406 battery

The wireless remote gives you the ability to turn the machine on from up to 9 m away for more freedom when using long shafts

System attachments, heads and shafts are available separately

Building on the strengths of the FUEL™ technology, MX FUEL™ system reaches new levels of cordless performance. Focused on petrol, corded and pneumatic performance, these tools deliver without the hazards associated with emissions, noise, vibration, tripping hazards and the frustrations of complex maintenance

ONE-KEY™ tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools. ONE-KEY™ also features a remote locking functionality

Select Model Variant

MXF CVBC-602

  • MXF CVBC-602
  • MXF CVBCKIT-602
  • MXF CVBC-0

Where to buy

Find a store

Specification

Product Specifications MXF CVBC-602
MXF CVBC-602
MXF CVBCKIT-602
MXF CVBCKIT-602
MXF CVBC-0
MXF CVBC-0
Article Number NetC.Milwaukee.Core.ProductDetail.Models.Api.SpecificationNetC.Milwaukee.Core.ProductDetail.Models.Api.SpecificationNetC.Milwaukee.Core.ProductDetail.Models.Api.Specification
Battery pack capacity (Ah) 6.06.0
Battery type Li-ionLi-ionLi-ion
Columns ✔✔✔✔✔✔✔✔✔
Footings ✔✔✔✔✔✔
Kit included 2 x MXF XC406 Battery packs, MXF C Charger, No kitbox or bag supplied2 x MXF XC406 Battery packs, MXF C Charger, No kitbox or bag supplied
No. of batteries supplied 22
Slabs
Standard equipment Remote controlRemote control, 4 m vibrator shaft, 38 mm vibrator head Remote control
Supplied in No kitbox or bag suppliedNo kitbox or bag suppliedNo kitbox or bag supplied
Vibrations (1/min) 11,20011,20011,200
Walls ✔✔✔✔✔✔✔✔✔
Weight with battery pack (EPTA) (kg) 10.3 (MXF XC406)10.3 (MXF XC406)10.3 (MXF XC406)
Sound power level (Lwa)(dB(A)) 101.1101.1101.1
Sound power level uncertainty (dB(A)) 333
Sound pressure level (Lpa)(dB(A)) 90.190.190.1
Sound pressure level uncertainty (dB(A)) 333
Vibration level (m/s²) 9.89.89.8
Vibration uncertainty (m/s²) 1.51.51.5
