M18 FSZ

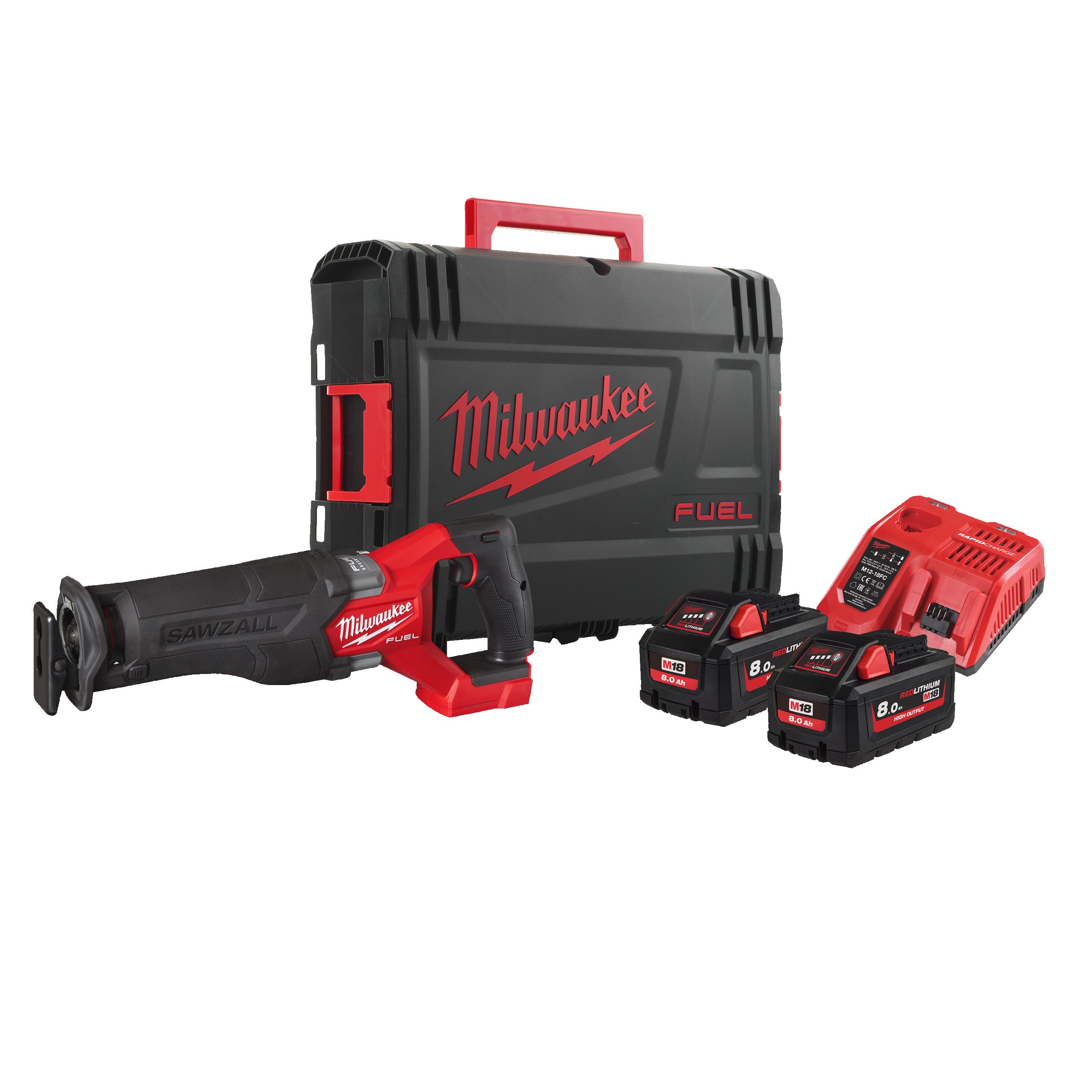

M18 FUEL™ SAWZALL™

Features

Brushless POWERSTATE™ motor for up to 5x longer motor life and up to 30% faster cutting

Patented gear protecting clutch - extends gear and motor life by absorbing high impact forces caused by sudden blade lock-ups

Wear resistant lever actuated FIXTEC™ blade clamp provides fast and easy blade changes

Metal reinforced battery connection provides improved durability and battery retention over life

Built-in LED light illuminates the work surface while cutting

Adjustable shoe for optimised use of saw blades

Integrated battery fuel gauge

Durable metal rafter hang hook for work space management and safety

Integrates three MILWAUKEE®-exclusive technologies - the POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ intelligence hardware and software - which deliver outstanding power, run time and durability on the jobsite

Flexible battery system: works with all MILWAUKEE® M18™ batteries

Select Model Variant

M18 FSZ-502X

Where to buy

Find a store

Range Spec

Product Specifications M18 FSZ-502X M18 FSZ-502X M18 FSZ-0X M18 FSZ-0X
ArticleNumber 4933478292, 49334782914933478293
Battery type Li-ionLi-ion
Kit included 2 x M18 B5 Battery packs, M12-18 FC Charger, HD Box
Max. cutting depth in aluminium (mm) 2525
Max. cutting depth in metal pipe (mm) 150150
Max. cutting depth in non-ferrous metal (mm) 2525
Max. cutting depth in soft-wood (mm) 300300
Max. cutting depth in steel (mm) 2020
No load stroke rate (spm) 0-30000-3000
No. of batteries supplied 22
Stroke length (mm) 3232
Supplied in HD BoxHD Box
Vibration cutting boards (m/s²) 26.726.7
Vibration cutting boards uncertainty (m/s²) 1.51.5
Vibration cutting wooden beam (m/s²) 25.125.1
Vibration cutting wooden beam uncertainty (m/s²) 1.51.5
Voltage (V) 1818
Weight with battery pack (kg) 3.8 -
Sound power level (Lwa)(dB(A)) 96.4
Sound power level measured (dB(A)) 96.4
Sound power level measured uncertainty (dB(A)) 33
Sound power level uncertainty (dB(A)) ,
Sound pressure level (Lpa)(dB(A)) 85.485.4
Sound pressure level uncertainty (dB(A)) 33
